Adjustable Stainless Steel Worm Gear German Type Hose Clamp Water Pipe & Fixed Tube Clip
product description
German style hose clamps are available in two stainless steel material grades: W2 and W4, to suit a wide range of application needs. With a choice of 9mm and 12mm bandwidths, you can choose the most suitable bandwidth for your specific requirements. Each hose clamp is clearly marked with the material grade and intended use, ensuring that you can easily find the right hose clamp for your project. This attention to detail ensures a stable and reliable connection, no matter what the application.
| Size (mm) | Bandwidth (mm) | Material | Suggest Install torque (Nm) | Pcs Bag | Pcs Carton |
| 8-12 | 9 | W1 W2 W4 W5 | W1&W2:φX≤φ25
3.0 Nm
φX≥φ273.4Nm
W3&W4:φX≤φ25 4.0 Nm φX≥φ274.9Nm |
100 | 2000 |
| 10-16 | 9 | W1 W2 W4 W5 | 100 | 2000 | |
| 12-20 | 9 | W1 W2 W4 W5 | 100 | 2000 | |
| 16-27 | 9 | W1 W2 W4 W5 | 100 | 1000 | |
| 20-32 | 9 | W1 W2 W4 W5 | 100 | 1000 | |
| 25-40 | 9 | W1 W2 W4 W5 | 50 | 1000 | |
| 30-45 | 9 | W1 W2 W4 W5 | 50 | 1000 | |
| 32-50 | 9 | W1 W2 W4 W5 | 20 | 1000 | |
| 40-60 | 9 | W1 W2 W4 W5 | 20 | 1000 | |
| 50-70 | 9 | W1 W2 W4 W5 | 20 | 1000 | |
| 60-80 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 70-90 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 80-100 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 90-110 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 100-120 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 110-130 | 9 | W1 W2 W4 W5 | 20 | 500 | |
| 120-140 | 9 | W1 W2 W4 W5 | 20 | 250 |
| Size (mm) | Bandwidth (mm) | Material | Suggest Install torque (Nm) | Pcs Bag | Pcs Carton |
| 16-25 | 12 | W1 W2 W4 W5 | W1
φX≤φ25:3.0 Nm φX≥φ27:3.4Nm W2:4.5 W3&W4: φX≤φ25:4.0 Nm φX≥φ27:4.9Nm |
100 | 1000 |
| 16-27 | 12 | W1 W2 W4 W5 | 100 | 1000 | |
| 20-32 | 12 | W1 W2 W4 W5 | 100 | 1000 | |
| 25-40 | 12 | W1 W2 W4 W5 | 50 | 1000 | |
| 30-45 | 12 | W1 W2 W4 W5 | 50 | 1000 | |
| 32-50 | 12 | W1 W2 W4 W5 | 20 | 1000 | |
| 40-60 | 12 | W1 W2 W4 W5 | 20 | 1000 | |
| 50-70 | 12 | W1 W2 W4 W5 | 20 | 500 | |
| 60-80 | 12 | W1 W2 W4 W5 | 20 | 500 | |
| 70-90 | 12 | W1 W2 W4 W5 | 20 | 500 | |
| 80-100 | 12 | W1 W2 W4 W5 | 20 | 500 | |
| 90-110 | 12 | W1 W2 W4 W5 | 20 | 250 | |
| 100-120 | 12 | W1 W2 W4 W5 | 20 | 250 | |
| 110-130 | 12 | W1 W2 W4 W5 | 20 | 250 | |
| 120-140 | 12 | W1 W2 W4 W5 | 20 | 250 | |
| 130-150 | 12 | W1 W2 W4 W5 | 20 | 250 | |
| 140-160 | 12 | W1 W2 W4 W5 | 20 | 250 |
Detailed Images

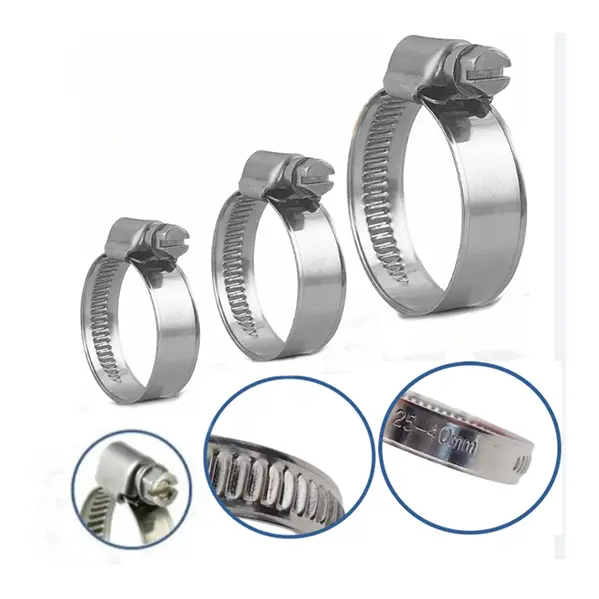

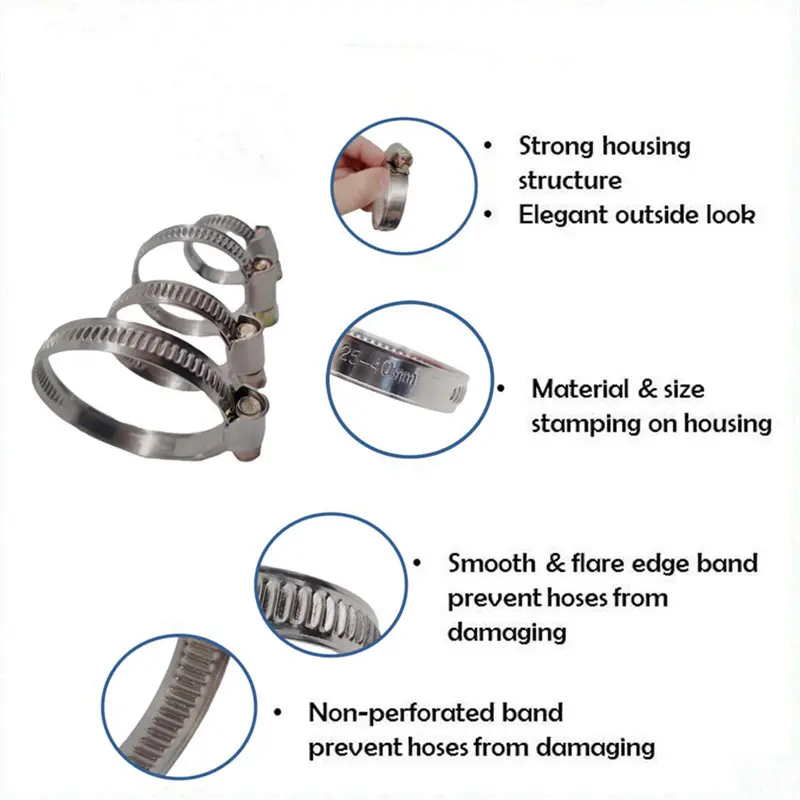

The German style hose clamp features a unique ribbed design that enhances its grip and stability. The special embossed edges on both sides of the strap not only provide a secure hold, but also ensure that no sharp edges that could damage the pipe are present during installation. This thoughtful design consideration minimizes the risk of cuts or abrasions, making it a safe choice for professionals and DIY enthusiasts.

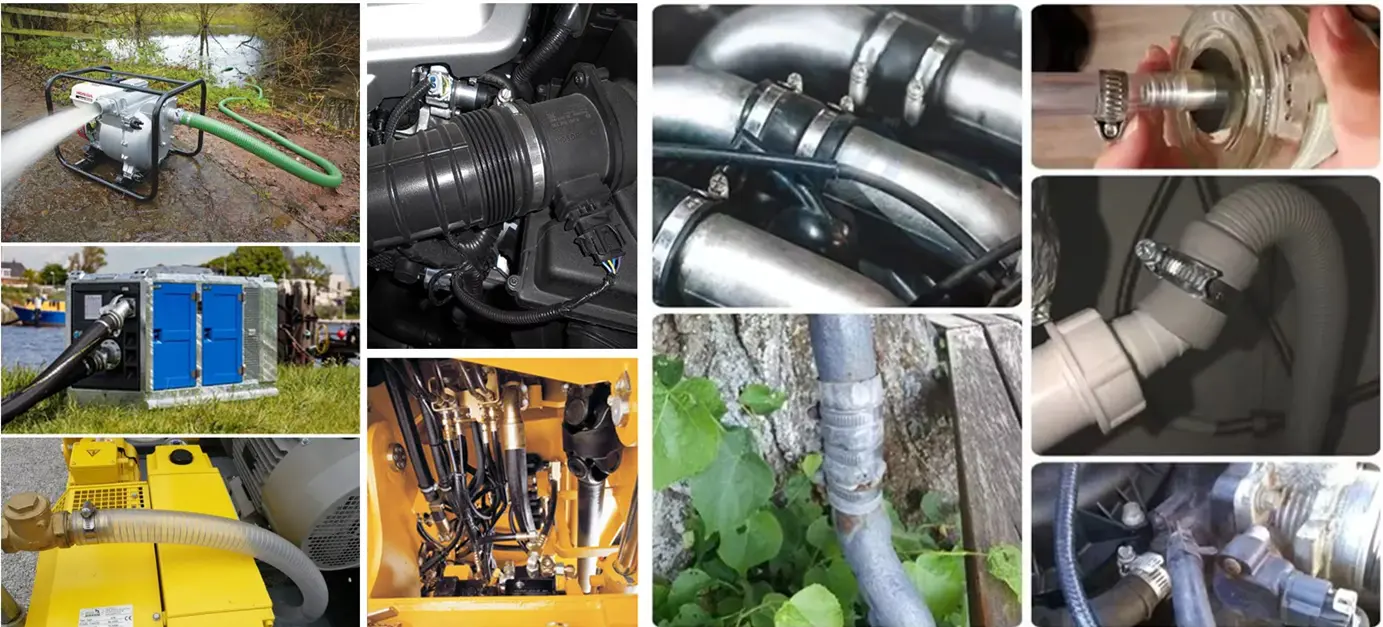

Application
German style hose clamps are not only functional, but also look great, perfect for high-end or specialty parts. German style hose clamps are ideal when connecting premium components, providing a secure lock while maintaining a polished appearance. Their low friction properties further enhance their performance, making them a reliable choice for a variety of applications.
In summary, the German style hose clamp is an affordable and high-quality solution for all your pipe connection needs. With its sophisticated design, sturdy materials, and versatile applications, it is the first choice of professionals and amateurs alike. Whether you work in plumbing, automotive, or any other industry that requires reliable pipe connections, the German style hose clamp is designed to meet and exceed your expectations.
Packaging and Transportation
description2
